Our complete medical equipment testing system

MTP 500/5000

An automatic controlled function checking system in miniformat.
PC-controlled !
features :
Function tests for :

- Infusion pump
- Defibrillator
- High frequency equipment
- Electrical therapy
- External pacemaker

- ext.Extensionbox with    - ECG-test
   (new)                               - inv.Bloodpressure-test
                                            - 2nd Electr.Therapy-channel
                                            - add. ext.pacemaker-test
                                            - SPO2 (under construction)

Our IEC 601-Options are :
IEC 601 controlling ext. saftety tester manufacturers :

- Gossen/Metrawatt- Secutest EN62353-IEC601
- Bender Unimet 1000
- Gerb 100
- SPL Systems
- MTP6000

Advantage :
Full binded to the automatic check run of dekivered control software

Standard measuring routines for :
by IEC 601 :
-Isolation-
-Case- and ground leakage current measuring
-Patient leakage current measuring
-Earth wire resistance
-Power consumption

by EN62353 :
-Isolation
-Sub.Chassis leakage current
-Sub.Patient leakage current
-Earth wire resistance

and lots more

MTP 500/5000 System

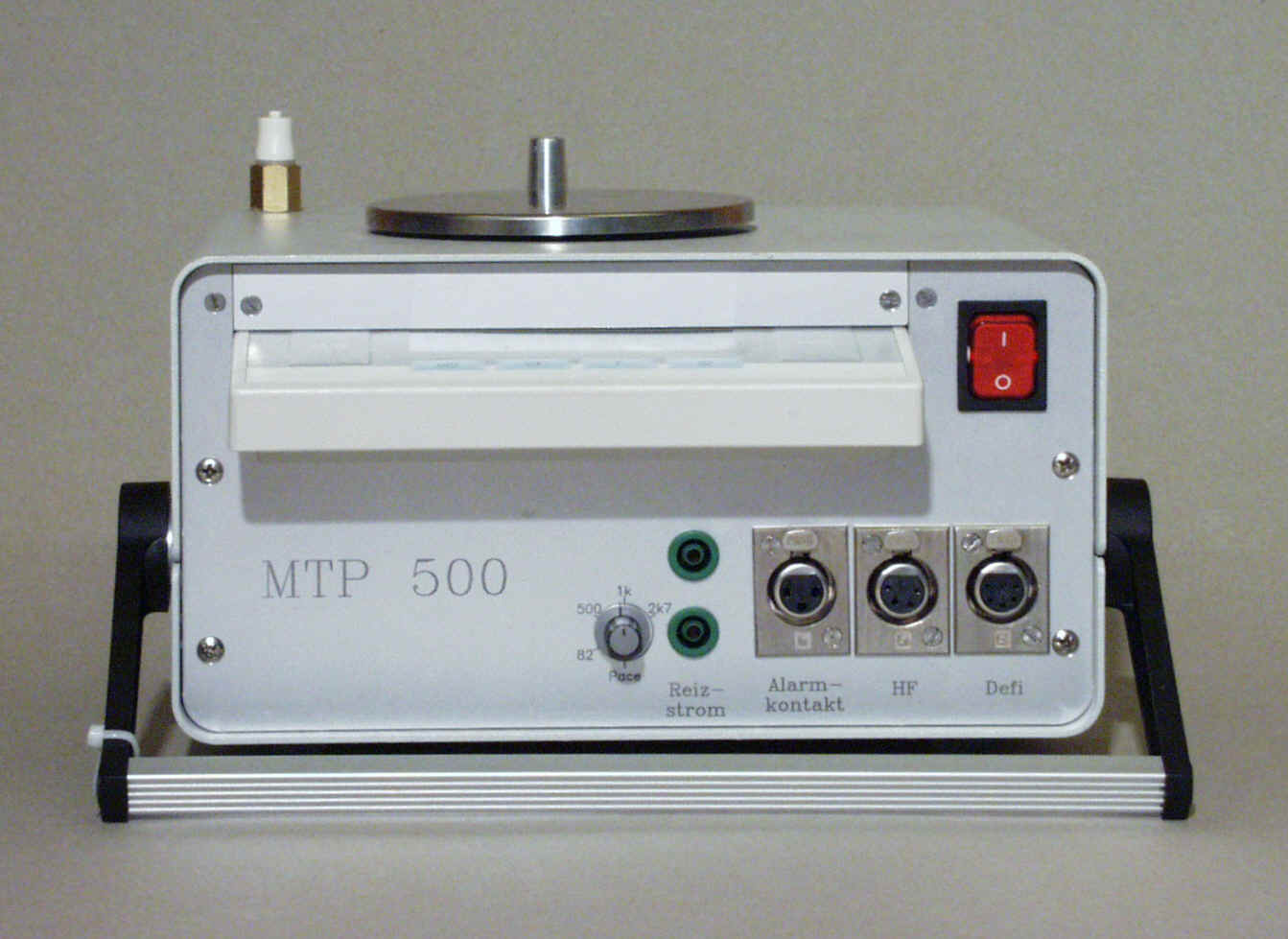

MTP 500/5000
Full automatic measurement system, controlled by PCMCIA-Card or PC-Card (National Instruments).
Universal use due to law regulations. Measuring by preselected regulations (type-model directory - MEDOC-).

The features in detail :

Infusion pumps :                     - measuring principle - scale - deviation 0,2%
                                              - Flow rate range 0,1 ml/h - 10 l/h !!!!!
                                               (Graphics view - autom. limit values shown)
                                              - Occlusion pressure up to 4 bar - Pressure-Min/Max-calculating
                                                (Graphics view - autom.limit values shown)
                                              - Bolus measurement
                                              - Alarmcontact checking (heavy XLR-Plugs)

Defibrillators :                        - Absorbated energy in Joules - ext.Box-resistance 50 Ohms
                                              - Range up to 1000 Joules
                                                (Graphics view, calculating of deviation in %)
                                              - Maximal voltage check
                                              - Pulse width check (10%-90%-range)
                                              - Synchronisation time

High frequnecy cutters:          - Power checking in realtime effektive-watts
                                              - Range up to 400 watts (differential meas. - floating input)
                                              - Shows effektive voltage
                                              - ext.resistance box 50-1000 Ohms

Electr.Therapy :                     - Checking upper limits effektive current value
                                                (Graphic display, calculating of deviation in %))
                                              - Resistance 80, 500, 1000, 2700 Ohms (internal)
                                              - Graphics dispaly of effective signal for low frequencies
                                              - Max.voltage calculating
                                              - Measuring DC-part

Ext.Pacemakers :                    - Checking current effektive value
                                                (Graphics shown)
                                              - Checking voltage effektive value
                                              - Adjustable resistance 50-1000 Ohms (50 Ohm-steps)
                                              - Checking impulse duration
                                              - Checking impulse frequency
                                              - Checking impulse voltage
                                              - Ext. Resistance box in minicase

ECG- Extension Module & High Frequency Cutter Module

Features :

ECG-Multfunction Box High Frequency Cutter Test

Function tests for :

- Defibrillator
- High frequency equipment
- Electrical therapy
- External pacemaker

- ext.Extensionbox with          - ECG-test
   (new-s.below)                    - inv.Bloodpressure-test IBP
                                            - Electr.Therapy-channel
                                            - Ext.pacemaker-test
                                            - Temperature measurement
                                            - SPO2 (under construction)

- add.with Defi-Dummy

The features in detail :

Defibrillators :                          - Absorbated energy in Joules - ext.Box-resistance 50 Ohms
                                              - Range up to 1000 Joules
                                                (Graphics view, calculating of deviation in %)
                                              - Maximal voltage check and - current
                                              - Pulse width check (10%-90%-range)
                                              - Synchronisation time via ECG leads or on Defi-pads
                                              - Test of automatic Defis - with heart-Fibrillation signal
                                                 automatic start of ECG after defibrillation

High frequency cutters:            - Power checking in realtime effektive-watts
                                              - Range up to 400 watts (differential meas. - floating input)
                                              - Shows effektive voltage
                                              - ext.resistance box 50-1000 Ohms

Electr.Therapy :                      - Checking upper limits effektive current value
                                                (Graphic display, calculating of deviation in %))
                                              - Resistance 80, 500, 1000, 2700 Ohms (internal)
                                              - Graphics dispaly of effective signal for low frequencies
                                              - Max.voltage calculating
                                              - Measuring DC-part

Ext.Pacemakers :                     - Checking current effektive value
                                                (Graphics shown)
                                              - Checking voltage effektive value
                                              - Adjustable resistance 50-1000 Ohms (50 Ohm-steps)
                                              - Checking impulse duration
                                              - Checking impulse frequency
                                              - Checking impulse voltage
                                              - Ext. Resistance box in minicase
                                              - Demand- Frequency and Amplitude-measurement
                                              - AV-Time measurement

NIBP - Noninvasive Blood Pressure :

                                              - Measuring bloodpressure instruments
                                              - Resolution 0-750 mmHg
                                              - Measurement via manual pump
                                              - Precision adjustment ( 0,1 mmHg)
                                              - kalibration possibility
                                              - Graphical display of pressure

Extension box :                        - ECG - all derivations, bpm adjustable from 30 to 300 bpm
                                                4 different signalforms, 3 amplitudes
                                              - ELECTRICAL THERAPY - 2nd channel with variable resistor
                                                from 0 to 4,7 kohms via display in box
                                              - EXT. PACEMAKER - added with variable resistor
                                                from 0 to 4,7 kohms via display in box
                                                (extends existing test)
                                              - INVASIVE BLOODPRESSURE-SIMULATION
                                                repaces sensor - direct connection to IBP-plug
                                                values from 0-40 and 200-240 mmHg
                                              - SPO2 under construction
                                              - Temperature simulation

ECG-Multfunction BOX

High frequency Cutter Test :

General : - Width 26cm x Height 14cm x Depth 24cm
- Weight app. 4 kg
- CE-Certified, Scale UL-certified

Versions :

MTP 500/5000 is in 2 Versions available :

a) MTP 500 : Infusion pump tester (Basic)
b) MTP 5000 : Full version - incl Defi-, HF-, El.Therapy- and ext.Pacemaker-
checking (upgrade MTP 500 to MTP 5000 possible).

2 Examples :

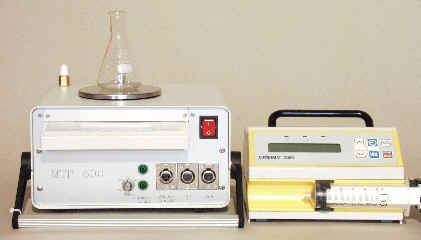

MTP 5000 - Flow rate checking

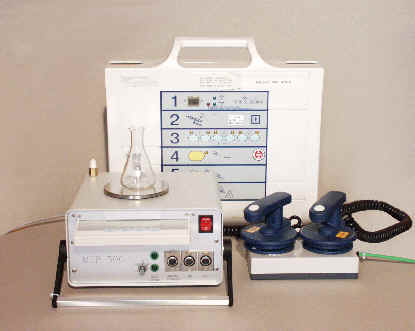

MTP 5000 - Defibrillator test

Defibrillator Test
External Resistorbox - 50 ohms
Floating signal input
Sync-ECG-pulse 120 p/m
with ext. mini-ECG-box (derivation 1-3)

Ask for details and prices

Safety Test Equipment

NEW NEW NEW NEW NEW NEW NEW in 2010

IEC Test-System-6000 (EKU)

IEC 601-Tester with High Voltage Test (first time on the market)

Measurement by IEC 601

ISOLATION RESISTANCE
GROUND LEAKAGE CURRENT
CASE LEAKAGE CURRENT
PATIENT LEAKAGE CURRENT
PROTECTION GROUND

ETC:

Measurements by EN 62353

REPLACEMENT DEVICE LEAKAGE CURRENT CLASS I CLASS II
DEVICE LEAKAGE CURRENT Direct CLASS I CLASS II
REPLACEMENT PATIENT LEAKAGE CURRENT
REPLACEMENT PATIENT LEAKAGE CURRENT Type B
CURRENT MEASUREMENT
POWER SUPPLY VOLTAGE MEASUREMENT

HIGH VOLTAGE TEST

TEST OF THE PATIENTCABLES-INLETS
HICH VOLTAGE ISOLATION TEST WITH 5000 Volts / 500uA

- SPARK-OVER RECOCNITION
- DURATION 30 sec

MORE FEATURES :

REMOTE CONTROL VIA RS232 AND THE PROVIDED SOFTWARE

CONTROL OF THE MTP6000 VIA TEST REGULATIONS

DEVICE PROTECTION

FUSE : AUTOMATIC 16A
CASE IP40
CONNECTIONS IP 20 by DIN VDE 0470 Part 1/EN60529
WEIGHT 12kg

ELECTRICAL SAFETY

PROTECTION CLASS I by IEC 601/VDE 0750
POWER SUPPLY 230 V (110Volts)
TEST VOLTAGE 5 KV

SPARK OVER CATEGORY II

DATA INTERFACE RS232

ART RS232, serial, by DIN 19241
Format 38,4 kBaud,N,8,1
